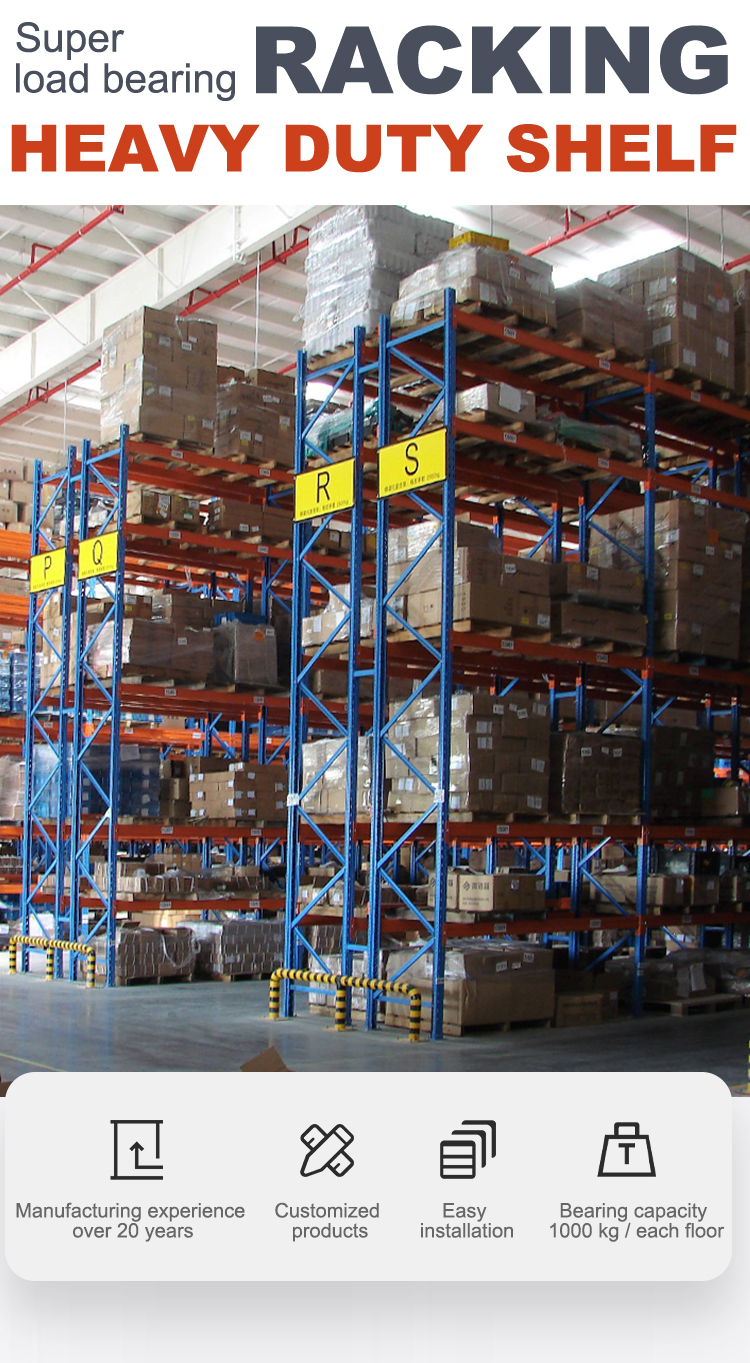

| Product Name | Heavy duty pallet rack |
| Size | L2300*W1000*H2550mm ( As your request ) |
| Layer | 2 ( As your request ) |
| Load Capacity | 1000KG (As your request ) |

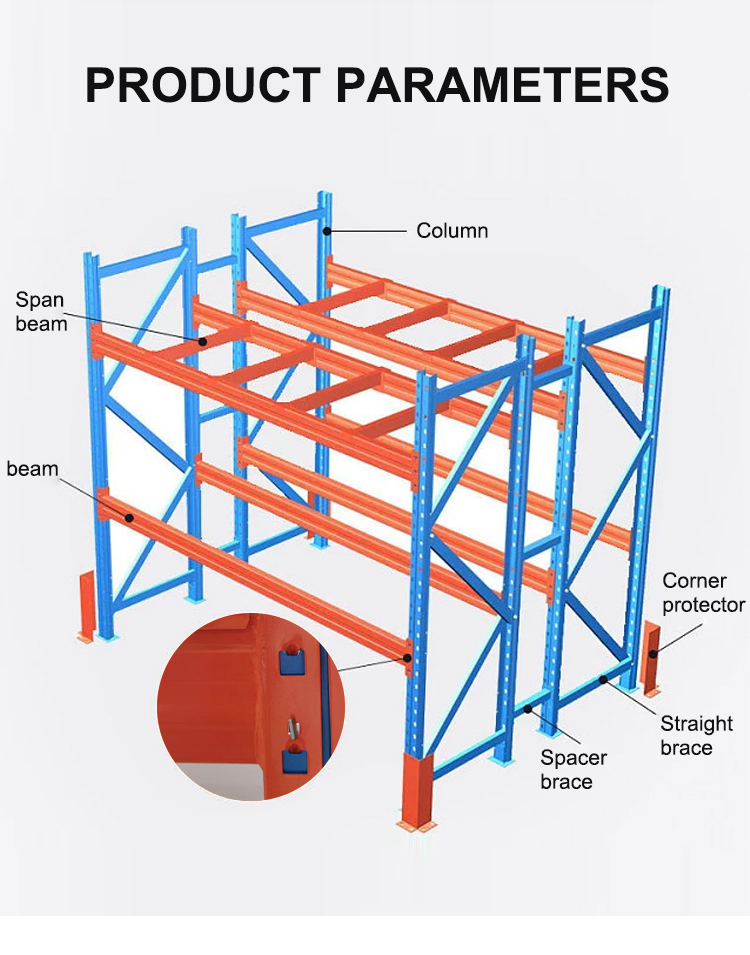

| Upright Specification | 2550*1000*90*70*1.5mm |
| Beam Specification | 2300*100*45*1.2mm |
| Usage | Warehouse/Supermarket/Industry storage rack & shelf |
Please tell us your required size and loading capacity per layer. We accept customized specifications. If needed, extra layers can be added to the shelf (Standard configuration is 2 layers).
| Model | Capacity/KG | Size( L*W*H )mm | Layer | Remark |
|---|---|---|---|---|
| JS-H01 | 1000KG | 2300*1000*2550 | 2 | Upright: 2550*1000*90*70*1.5mm Beam: 2300*100*45*1.2mm |
| JS-H02 | 1500KG | 2300*1000*2550 | 2 | Upright: 2550*1000*90*70*1.5mm Beam: 2300*100*45*1.5mm |
| JS-H03 | 2000KG | 2300*1000*2550 | 2 | Upright: 2550*1000*90*70*1.8mm Beam: 2300*120*45*1.5mm |
| JS-H04 | 3000KG | 2300*1000*2550 | 2 | Upright: 2550*1000*90*70*2.0mm Beam: 2300*140*45*1.5mm |
| JS-H05 | 4000KG | 2300*1000*2550 | 2 | Upright: 2550*1000*90*70*2.0mm Beam: 2300*160*45*1.5mm |
